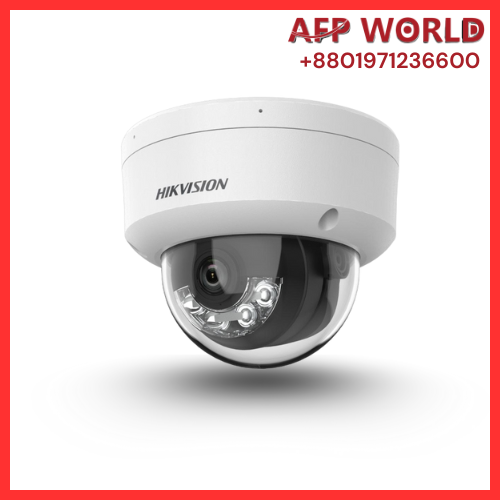

Hikvision DS-2CD1143G2-LIU 4MP Dome Network Camera

Item CCTV Camera
Model ✅ DS-2CD1143G2-LIU
Brand Hikvision
CCTV Type Fixed
Sensor 1/3″ Progressive Scan CMOS
Lens Fixed focal lens, 2.8 and 4 mm optional
Video Resolution 2560 x 1440p
Signal System Wi-Fi
Day / Night Yes
IR Up to 30m
Connectivity IP Camera
Waterproof / Dustproof IP67
CCTV Housing Bullet
Power Supply 12 VDC ± 25%, 0.5 A, max. 6W
Camera
Min. Illumination
Color: 0.005 Lux at (F1.6, AGC ON)
Black / White: 0 Lux with IR
Shutter Time: 1/3 s to 1/100000 s
Day & Night: IR cut filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
Focal Length & FOV
2.8 mm
horizontal FOV 98°
vertical FOV 54°
diagonal FOV 114°
4 mm
horizontal FOV 78°
vertical FOV 42°
diagonal FOV 93°
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream
50 Hz
20 fps, 2560 x 1440
25 fps, 1920 x 1080, 1280 x 720
60 Hz
20 fps, 2560 x 1440
24 fps, 1920 x 1080, 1280 x 720
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60 Hz: 24 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Audio
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM/AAC-LC
Network
Simultaneous Live View: Up to 6 channels
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client: iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range: 120dB
SNR: 52dB
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC,HLC,3D DNR
Interface
1 x RJ45 10 M/100 M self-adaptive Ethernet port
Built-In Microphone: Yes
Reset Key: Yes
On-Board Storage
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512GB
Power
12 VDC ± 25%, 0.5 A, max. 6W, 5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5W
Protection
IP67: IEC 60529-2013, IK08: IEC 62262:2002
Material: Metal & Plastic
Dimension: 121.4 mm × 97.7mm
Weight Approx. 550g
Hikvision DS-2CD1143G2-LIU Description
Hikvision DS-2CD1143G2-LIU is a smart hybrid light fixed dome network camera that features high quality imaging with 4MP resolution. So this camera is able to produce excellent quality pictures. It has a built-in microphone for real-time audio listening and security. Also features efficient H.265+ compression technology that ensures reduced video bandwidth and storage requirements without compromising video quality.
