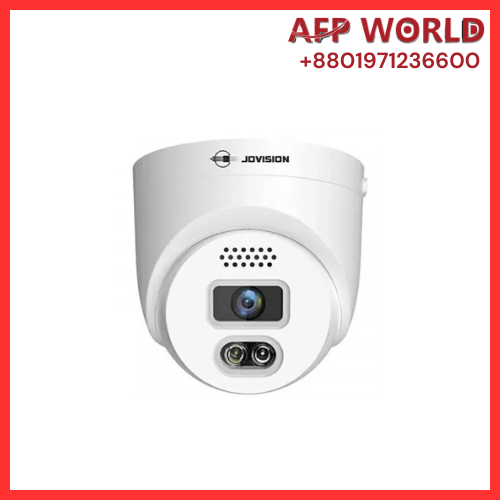

Jovision 5MP Full Color Audio & Video PoE Camera

Item CCTV Camera
Model ✅ JVS-N537-SDL
Brand Jovision
CCTV Type Fixed
Sensor 5.0MP, 1/3″ CMOS Sensor
Lens 2.8mm
Video Resolution 2560 x 1792p
Signal System LAN
Day / Night Automatic switching, 24/7 full color picturing
IR Up to 30 Meters
Connectivity IP Camera
Waterproof / Dustproof IP67 resistance
CCTV Housing Dome
Power Supply DC12V or PoE (IEEE802.3af)
Appearance
Lights: 2 White LEDs + 2 IR LEDs
Material: Plastic + Metal
Color: White
Two-way audio communication
Built-in microphone & speaker for two-way audio connectivity
Notification & Warning
Email alarm, Client alarm
Motion Detection
This feature allows to detect human movement & deliver notification to the owner’s smartphone
Video
Compression: H.264/H.265
Frame Rate: 25fps
Bitrate Main Stream: 317Kbps ~ 8MbpsSub
Sub Stream: 68Kbps~2728Kbps
SNR: 52dB
Min. Illumination: 0Lux (light ON)
Lens
Interface Type: M12
FOV Wide Angle
Horizontal: 96°
Vertical: 53°
Diagonal: 110°
Other Functions
Audio Codec: G.711U/G.711A (default)
Video quality catalyst (VQC) technology: Yes
Exposure Control: Auto
White Balance: Auto
Gain Control: Auto
Digital 3D Noise Reduction: Yes
Reset Button: Yes
SNTP: Yes
Schedule Reboot: Yes
Smart Defog: Yes
Screen Settings: Mirroring, Flipping
DWDR: Yes
IP Adaptation: Automatic
OSD Information Setting
Large font OSD, OSD flashing on alarm, OSD position settings
Color Setting
Support Saturation, Brightness, Contrast, Sharpness Adjustment
Image Style: Standard, Soft, Transparent
Privacy Mask
Supported Musk: 8
Intelligent Analysis
Region Intrusion Detection
Line Crossing Detection
Video Blocking Detection
People Counting
Remote Operation
Audio & Video, Image, Alarm, Network management, Storage management, Intelligent analysis
Storage
SD Card: Up to 512GB supported
Network
Ethernet: 10/100Mbps
Stream: 2x
Network Protocols
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF: Standard
Network Transmission: CloudSEE 2.0
Browser: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Limit: Up to 13 Users
App Support: iOS/Android
Power Consumption
During Day: 4W
At Night: 6W
Temperature Operation
Working Temperature: -25°C ~ 55°C
Working Humidity: 5% ~ 95% Rh
Installation Method: Wall or Ceiling mount
Dimension: 106 x 94 x 106mm
Weight: 320gm
Jovision JVS-N537-SDL Description
This Jovision JVS-N537-SDL is a PoE networked IP camera that uses a 5MP, CMOS sensor which can record full-color video in 2560 x 1792p resolution. Besides, it has 30 meters of IR distance capability during day & night. This camera is specially designed with a built-in mic & speaker so that users can record videos including audio communication. For that reason, it will be more easy to know by hearing suspicious conversations. The JVS-N537-SDL offers many other features such as video quality catalyst (VQC) technology, 3D noise reduction, a reset button, IP adaptation, email alert, motion detection, 25fps frame rate & many more.
